[In-stock] Vertex V 1.2 Mechanical Keyboard Switch, Linear (MX Red), Cherry MX Stem
V1.2 is a shaft jointly launched by VERTEX and the famous Spanish technology blogger Nate Gentile. On the one hand, V1.2 continues the classic color scheme of V periwinkle with a black shell, and also uses the same injection molding material as the V1 shaft. At the same time, the mold has been reselected and adjusted according to Nate's suggestions.

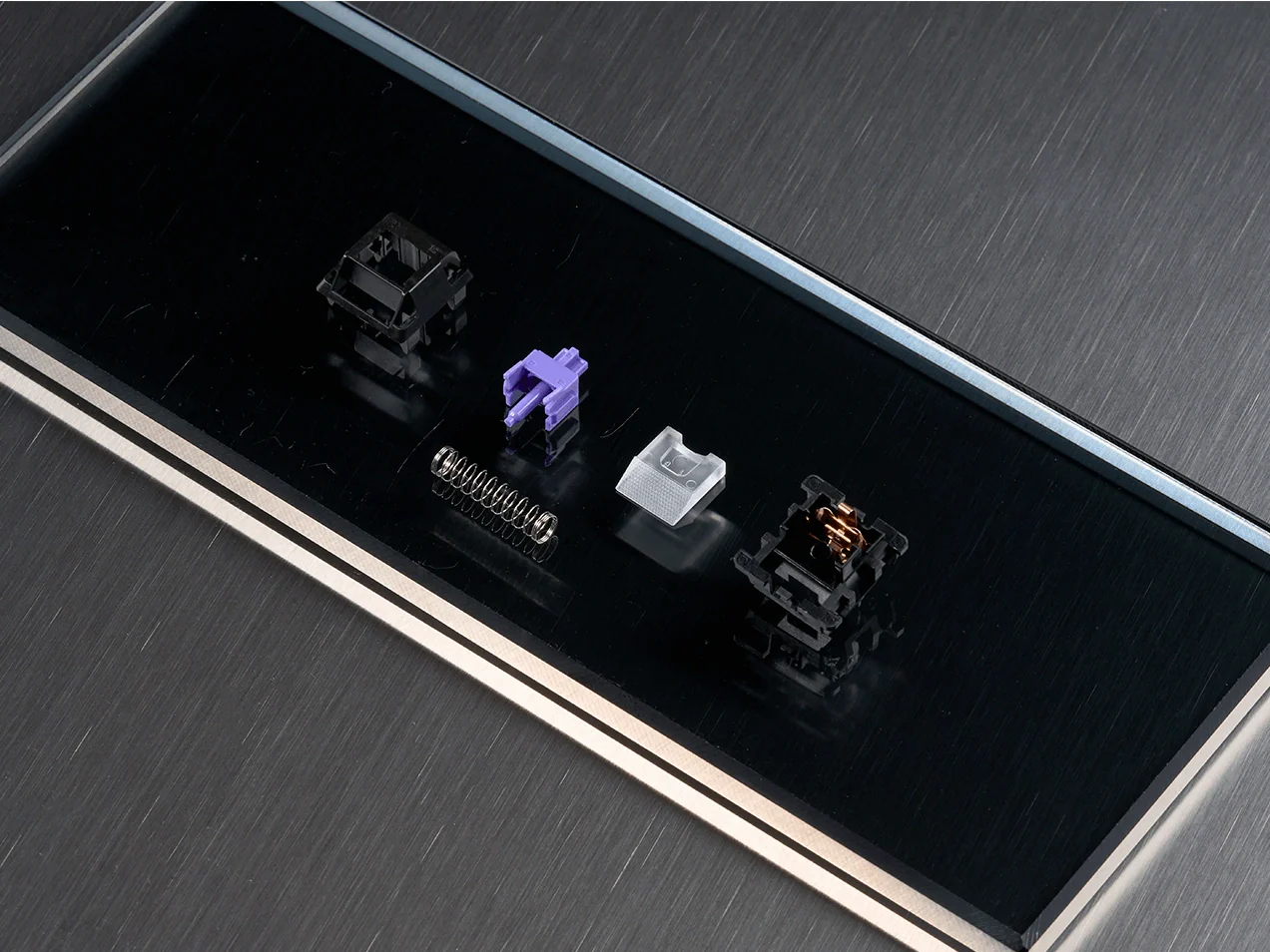

Compared with the V1 shaft, V1.2 adopts an upper shell with a light guide, shortens the key travel (3.7±0.3 mm) and changes the bottoming method (flat head bottoming) based on the original design, and is equipped with an 18 mm single-section lengthened spring, making the typing feel more crisp and refreshing, different from the muffled sound effect of the V1 shaft.
- Switching voltage: 12 V AC/DC max
- Switching current: 10 mA AC/DC max
- Dielectric strength: 500 V/50Hz
- Durability:>0.8 million actuations
- Contact configuration: Single-pole contact
- Actuator travel: 3.7±03 mm
- Pretravel:2.0±0.5 mm
- Initial force: 35gf min
- Operating force:45±10gf
- Total travel force: 52±10gf
- Bounce time:<5 ms (during actuation with 0,4 m/s)
- Spring: Stainless steel
- Contacts: High quality gold silver and palladium alloy
- Storage Temperature: 5'℃ to 40℃℃
- Operating Temperature: -40'℃ to 70℃
Product Information
Product Information
Shipping & Returns
Shipping & Returns
[In-stock] Vertex V 1.2 Mechanical Keyboard Switch, Linear (MX Red), Cherry MX Stem
[In-stock] Vertex V 1.2 Mechanical Keyboard Switch, Linear (MX Red), Cherry MX Stem
V1.2 is a shaft jointly launched by VERTEX and the famous Spanish technology blogger Nate Gentile. On the one hand, V1.2 continues the classic color scheme of V periwinkle with a black shell, and also uses the same injection molding material as the V1 shaft. At the same time, the mold has been reselected and adjusted according to Nate's suggestions.
Compared with the V1 shaft, V1.2 adopts an upper shell with a light guide, shortens the key travel (3.7±0.3 mm) and changes the bottoming method (flat head bottoming) based on the original design, and is equipped with an 18 mm single-section lengthened spring, making the typing feel more crisp and refreshing, different from the muffled sound effect of the V1 shaft.
- Switching voltage: 12 V AC/DC max
- Switching current: 10 mA AC/DC max
- Dielectric strength: 500 V/50Hz
- Durability:>0.8 million actuations
- Contact configuration: Single-pole contact
- Actuator travel: 3.7±03 mm
- Pretravel:2.0±0.5 mm
- Initial force: 35gf min
- Operating force:45±10gf
- Total travel force: 52±10gf
- Bounce time:<5 ms (during actuation with 0,4 m/s)
- Spring: Stainless steel
- Contacts: High quality gold silver and palladium alloy
- Storage Temperature: 5'℃ to 40℃℃
- Operating Temperature: -40'℃ to 70℃
